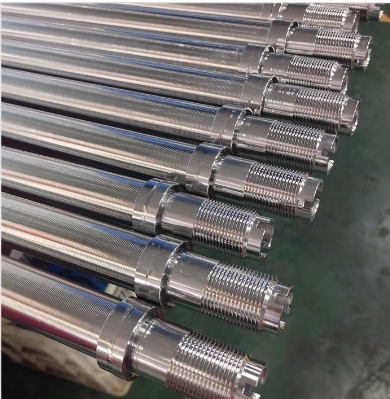

WDJ‑W23 High Precision Wedge Wire Filter Element

WDJ‑W23 High Precision Wedge Wire Filter Element

Overview

WDJ‑W23 high-precision wedge wire filter element is positioned for high-end precision filtration working conditions of fine chemicals, adopting all 316L stainless steel integral forming technology with stable filtration accuracy of 23±2μm. Adopting internationally mainstream precision wedge wire structure design, the product features uniform gaps, high interception accuracy and excellent self-cleaning effect. Specially built for high-end clean fluid filtration scenarios, it operates stably without leakage and impurity residue, meeting the purification needs of various high-precision industrial fluids and adapting to most precision automatic backwash filtration systems.

Parameters

Filtration Rating: 23±2μm;

Material: All 316L stainless steel;

Working Pressure: Max. 3.2MPa;

Working Temperature: Max. 300℃;

Wire Strength: 1200~1300MPa; Structure:

Integral precision filtration structure Φ26mm×915mm; Welding:

CNC automatic seamless fusion welding;

Inspection: 2.5D image instrument precision accuracy verification;

Removal Efficiency: ≥99%;

Industrial Service Life: 4~5 years

Value

High-precision interception adapts to high-end clean production standards of fine chemicals;

Stable structure with pressure and temperature resistance enables long-term continuous operation without frequent replacement;

Thorough backwashing avoids impurity accumulation and blockage,

greatly reducing equipment downtime rate;

China precision manufacturing quality with fast delivery and efficient after-sales technical service response.

Applications

Fine chemical fluid filtration,

Precision raw material liquid purification,

Food and pharmaceutical clean filtration,

Environmental protection precision

Water treatment,

High-end industrial fluid purification

Service

Precision filtration working condition selection solution provided;

Material certificate, test report and product qualification certificate provided;

Support non-standard size mapping customization and on-site maintenance services.
