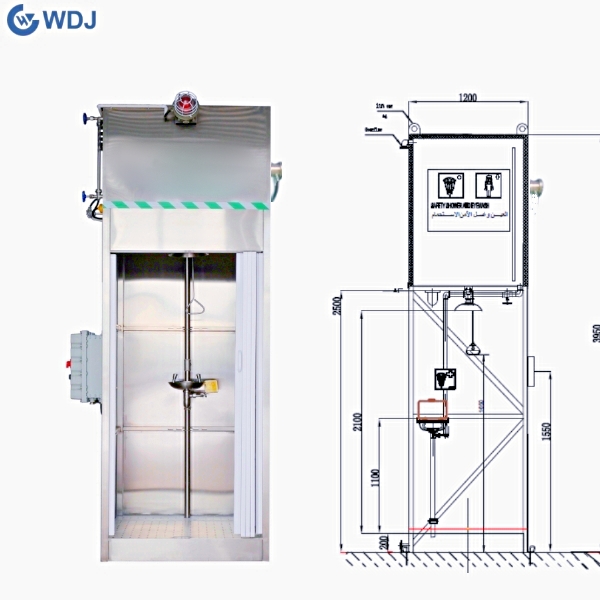

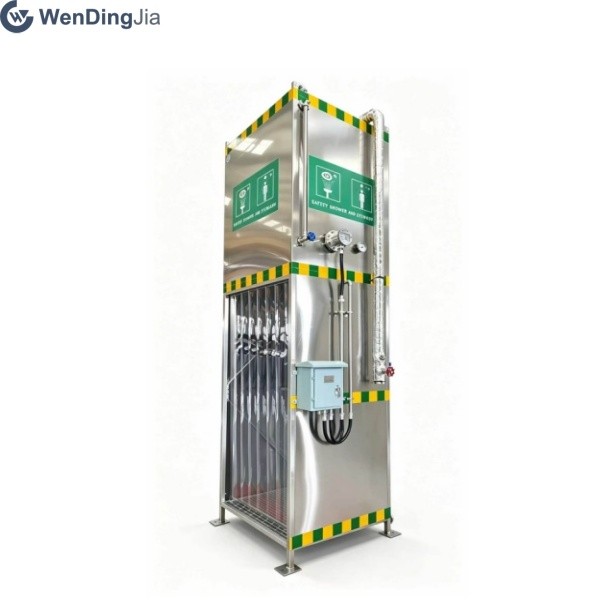

1500L Tank Fed Immersion Heated Safety Shower And Eyewash

WDJ99020-6H, for outdoor cold climate

It is a good choice when there is no constant supply of water being guaranteed. Equally, if there is insufficient water pressure or inadequate flow rates a tank fed safety shower & eyewash is essential. This 1500 litre capacity model meets EN15154 and ANSI Z358.1-2014 requirements, providing 76 litres of potable water per minute for the recommended 15 minutes.

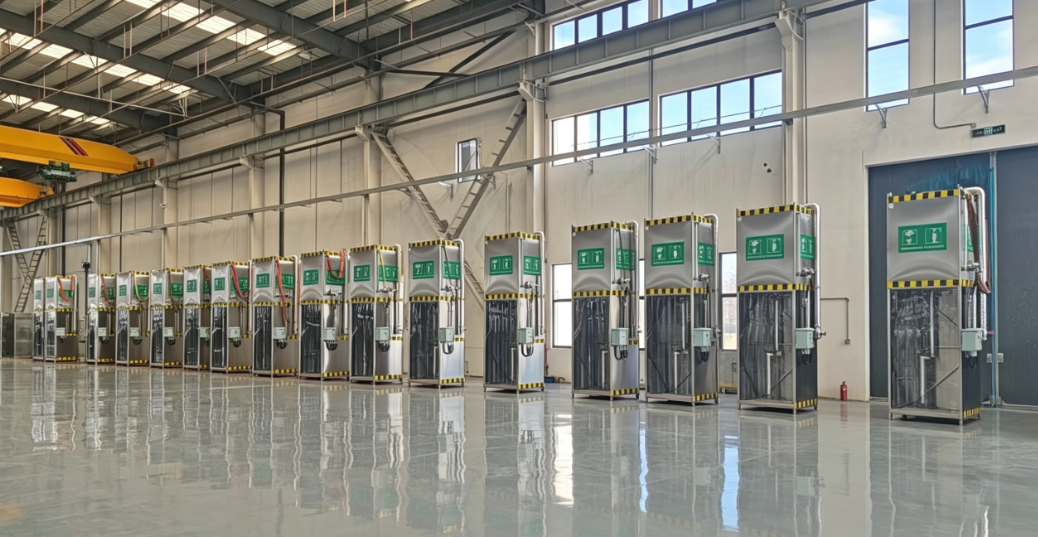

99020-6 - 0722.png

For outdoor use in hot climates, extra chiller unit is required to prevent water within the tank reaching dangerous levels and potentially scalding a casualty upon activation. Choose from a selection of chiller options to guarantee the provision of tepid water. The range includes units suited to both hazardous and non-hazardous environments.

For indoor use, this model assists in maintaining a steady water temperature within the tank.

Also audible and visual alarm is equipped for this model.

Model	WDJ99020-6H
Size	120012003950mm
Material	Stainless steel 304 / SS316L
Certificate & Standard	ANSI Z 358.1-2014, EN15154.1/2:2006
Wall Thickness	1.2mm
Pipe thickness	2.5-3mm
Function	eye washing, body showering
Working pressure	0.2MPa-0.6MPa
Test pressure	1.0MPa
Working environment temperature	5 ° C -35 ° C
Inlet size	NPT 1 1/4″
Drain size	NPT 2″
Eyewash flow rate	≥11.4L/min
Shower flow rate	≥75.7L/min
Audible and visual alarm	Available
